Now that we've entered a basic configuration on Vyatta VC4 VMs and made sure that we do not have connectivity problems, we can proceed and test the GRE and IPIP tunnels in case of Scenario 2. If you do not recall what was Scenario 2 take a look here.
First we will configure them without IPsec protection to see how they behave. Since we are in our private lab, security is not a problem. I suppose I do not have to remind you that, in practice, if you simply first configure the GRE or IPIP tunnels without IPsec protection to make sure that they are up and working, *anybody* with access to the wire can hack into your network (the portion of it accessible through the tunnels).
As said before, Vyatta really shines in a particular area: if you have to do a deployment in practice, you can actually do so having a working and tested configuration. First you can easily do the tests using a VMware lab for example, find a working configuration and optimize this configuration. Then, with the confidence gained over your configuration files, deployment should be easy and trouble free.
And the branch office admins can be provided with a fully workable configuration file to enter on their Vyatta machines.
These aspects are quite important because they can save time and money.
As in Part 9, I will enable VMware Network Adapter VMnet5, VMware Network Adapter VMnet6, VMware Network Adapter VMnet7 on the host machine, see Figure136.
Figure136: VMware Network Adapters VMnet5, VMnet6 and VMnet7 Enabled
Also, since VMware Network Adapters VMnet5, VMnet6 and VMnet7 are enabled, I can use a SSH client from the host machine to configure the routers.
And before entering the configuration lines on the Vyatta VC4 machines, I will start a Wireshark capture on the VMnet5 interface on the host machine(see Figure137, make sure "Capture packets in promiscous mode " is selected). Doing so, I will have a nice point of view over the traffic sent between Vyatta VC4 machines because Vyatta HQ represents the hub, I will see the first packets sent through the tunnels, the OSPF multicast packets and so on. This is very useful for troubleshooting and we can actually see how things work. Additionally you can start Wireshark captures on VMnet6 and VMnet7 interfaces on the host machine in order to have a complete view over the traffic(see Figure138 and Figure139, make sure "Capture packets in promiscous mode " is selected).
Figure137: Start a Wireshark capture on the VMnet5 interface on the host machine
Figure138: Wireshark Capture Menu: Interfaces
Figure139: Start the Wireshark captures on the host machine
1. Vyatta HQ GRE Tunnels Config
On the Vyatta HQ machine, since we are using a hub-and-spoke topology and Vyatta HQ is the hub, we will create two GRE point-to-point tunnels, one to Branch1 and the other to Branch2.
set interfaces tunnel tun1
set interfaces tunnel tun1 address 192.168.111.1/30
set interfaces tunnel tun1 description "Gre Tunnel to Branch1"
set interfaces tunnel tun1 encapsulation gre
set interfaces tunnel tun1 local-ip 192.168.50.2
set interfaces tunnel tun1 remote-ip 192.168.60.2
set interfaces tunnel tun2
set interfaces tunnel tun2 address 192.168.121.1/30
set interfaces tunnel tun2 description "Gre Tunnel to Branch2"
set interfaces tunnel tun2 encapsulation gre
set interfaces tunnel tun2 local-ip 192.168.50.2
set interfaces tunnel tun2 remote-ip 192.168.70.2
commit
And we will run OSPF through these tunnels to discover the networks behind the other Vyatta VC4 machines.
set protocols ospf area 100
set protocols ospf area 100 network 192.168.10.0/24
set protocols ospf area 100 network 192.168.111.0/30
set protocols ospf area 100 network 192.168.121.0/30
set protocols ospf log-adjacency-changes
commit
save
2. Vyatta Branch1 GRE Tunnel Config
On the Vyatta Branch1 machine, which will be a spoke, we will create one GRE point-to-point tunnel, to Vyatta HQ.
set interfaces tunnel tun1
set interfaces tunnel tun1 address 192.168.111.2/30
set interfaces tunnel tun1 description "Gre Tunnel to HQ"
set interfaces tunnel tun1 encapsulation gre
set interfaces tunnel tun1 local-ip 192.168.60.2
set interfaces tunnel tun1 remote-ip 192.168.50.2
commit
And we will run OSPF through this tunnel to discover the networks behind the other Vyatta VC4 machines.
set protocols ospf area 100
set protocols ospf area 100 network 192.168.30.0/24
set protocols ospf area 100 network 192.168.111.0/30
set protocols ospf log-adjacency-changes
commit
save
3. Vyatta Branch2 GRE Tunnel Config
On the Vyatta Branch2 machine, which will be a spoke, we will create one GRE point-to-point tunnel, to Vyatta HQ.
set interfaces tunnel tun1
set interfaces tunnel tun1 address 192.168.121.2/30
set interfaces tunnel tun1 description "Gre Tunnel to HQ"
set interfaces tunnel tun1 encapsulation gre
set interfaces tunnel tun1 local-ip 192.168.70.2
set interfaces tunnel tun1 remote-ip 192.168.50.2
commit
And we will run OSPF through this tunnel to discover the networks behind the other Vyatta VC4 machines.
set protocols ospf area 100
set protocols ospf area 100 network 192.168.40.0/24
set protocols ospf area 100 network 192.168.121.0/30
set protocols ospf log-adjacency-changes
commit
save
If we take a look at the Wireshark capture, we will notice that it recorded some activity, a sign that our tunnels are working. In Figure140 we can spot OSPF traffic sent through the GRE tunnel between HQ and Branch1.
Figure140: Wireshark Capture GRE Tunnels: OSPF Traffic
Let's check the routing table on the Vyatta HQ, Vyatta Branch1 and Vyatta Branch2, see Figure141, Figure142 and Figure143. We can notice that every Vyatta VC4 machine is now aware of the networks behind the other Vyatta VC4 machines.
Figure141: Vyatta HQ GRE Tunnels: Routing Table

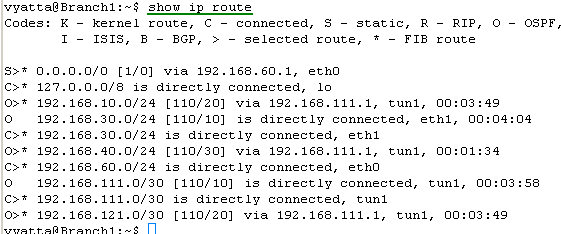

Figure142: Vyatta Branch1 GRE Tunnels: Routing Table
Figure143: Vyatta Branch2 GRE Tunnels: Routing Table
Let's look at the OSPF information about the tunnel interfaces on the Vyatta HQ, Vyatta Branch1 and Vyatta Branch2 (note the MTU too), see Figure144, Figure145 and Figure146.
Figure145: Vyatta HQ GRE Tunnels: show ip ospf interface tun1 and tun2
Figure146: Vyatta Branch1 GRE Tunnels: show ip ospf interface tun1
Figure147: Vyatta Branch2 GRE Tunnels: show ip ospf interface tun1
Let's see if we have connectivity between hosts located behind Vyatta VC4 machines, see Figure148, Figure149 and Figure150.
Figure148: GRE Tunnels: Ping from a Host Behind Vyatta HQ to Hosts Behind Vyatta Branch1 and Vyatta Branch2

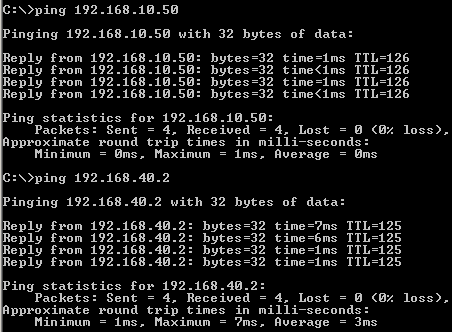

Figure149: GRE Tunnels: Ping from a Host Behind Vyatta Branch1 to Hosts Behind Vyatta HQ and Vyatta Branch2
Figure150: GRE Tunnels: Ping from a Host Behind Vyatta Branch2 to Hosts Behind Vyatta HQ and Vyatta Branch1
The ping traffic we generated was recorded by our Wireshark capture, see Figure151.
Figure151: Wireshark Capture GRE Tunnels: Ping
Things look good.
All the configuration lines entered on Vyatta HQ, Vyatta Branch1 and Vyatta Branch2 can be found here:
- Vyatta HQ
- Vyatta Branch1
- Vyatta Branch2
4. GRE - Make The hub-and-spoke Topology a Mesh One
If you want, you can make the hub-and-spoke topology a mesh one, by configuring a point-to-point GRE tunnel between Branch1 and Branch2.
On Branch1 add:
set interfaces tunnel tun2
set interfaces tunnel tun2 address 192.168.131.1/30
set interfaces tunnel tun2 description "Gre Tunnel to Branch2"
set interfaces tunnel tun2 encapsulation gre
set interfaces tunnel tun2 local-ip 192.168.60.2
set interfaces tunnel tun2 remote-ip 192.168.70.2
set protocols ospf area 100 network 192.168.131.0/30
commit
On Branch2 add:
set interfaces tunnel tun2
set interfaces tunnel tun2 address 192.168.131.2/30
set interfaces tunnel tun2 description "Gre Tunnel to Branch1"
set interfaces tunnel tun2 encapsulation gre
set interfaces tunnel tun2 local-ip 192.168.70.2
set interfaces tunnel tun2 remote-ip 192.168.60.2
set protocols ospf area 100 network 192.168.131.0/30
commit
5. Vyatta HQ IPIP Tunnels Config
On the Vyatta HQ machine, since we are using a hub-and-spoke topology and Vyatta HQ is the hub, we will create two IPIP tunnels, one to Branch1 and the other to Branch2.
set interfaces tunnel tun1
set interfaces tunnel tun1 address 192.168.111.1/30
set interfaces tunnel tun1 description "IPIP Tunnel to Branch1"
set interfaces tunnel tun1 encapsulation ipip
set interfaces tunnel tun1 local-ip 192.168.50.2
set interfaces tunnel tun1 remote-ip 192.168.60.2
set interfaces tunnel tun2
set interfaces tunnel tun2 address 192.168.121.1/30
set interfaces tunnel tun2 description "IPIP Tunnel to Branch2"
set interfaces tunnel tun2 encapsulation ipip
set interfaces tunnel tun2 local-ip 192.168.50.2
set interfaces tunnel tun2 remote-ip 192.168.70.2
commit
And we will run OSPF through these tunnels to discover the networks behind the other Vyatta VC4 machines.
set protocols ospf area 100
set protocols ospf area 100 network 192.168.10.0/24
set protocols ospf area 100 network 192.168.111.0/30
set protocols ospf area 100 network 192.168.121.0/30
set protocols ospf log-adjacency-changes
commit
save
6. Vyatta Branch1 IPIP Tunnel Config
On the Vyatta Branch1 machine, which will be a spoke, we will create one IPIP tunnel, to Vyatta HQ.
set interfaces tunnel tun1
set interfaces tunnel tun1 address 192.168.111.2/30
set interfaces tunnel tun1 description "IPIP Tunnel to HQ"
set interfaces tunnel tun1 encapsulation ipip
set interfaces tunnel tun1 local-ip 192.168.60.2
set interfaces tunnel tun1 remote-ip 192.168.50.2
commit
And we will run OSPF through this tunnel to discover the networks behind the other Vyatta VC4 machines.
set protocols ospf area 100
set protocols ospf area 100 network 192.168.30.0/24
set protocols ospf area 100 network 192.168.111.0/30
set protocols ospf log-adjacency-changes
commit
save
7. Vyatta Branch2 IPIP Tunnel Config
On the Vyatta Branch2 machine, which will be a spoke, we will create one IPIP tunnel, to Vyatta HQ.
set interfaces tunnel tun1
set interfaces tunnel tun1 address 192.168.121.2/30
set interfaces tunnel tun1 description "IPIP Tunnel to HQ"
set interfaces tunnel tun1 encapsulation ipip
set interfaces tunnel tun1 local-ip 192.168.70.2
set interfaces tunnel tun1 remote-ip 192.168.50.2
commit
And we will run OSPF through this tunnel to discover the networks behind the Vyatta VC4 machines.
set protocols ospf area 100
set protocols ospf area 100 network 192.168.40.0/24
set protocols ospf area 100 network 192.168.121.0/30
set protocols ospf log-adjacency-changes
commit
save
If we take a look at the Wireshark capture, we will notice that it recorded some activity, a sign that our tunnels are working. In Figure152 we can spot OSPF traffic sent through the IPIP tunnel between HQ and Branch1.
Figure152: Wireshark Capture IPIP Tunnels: OSPF Traffic
Let's check the routing table on the Vyatta HQ, Vyatta Branch1 and Vyatta Branch2, see Figure153, Figure154 and Figure155 . We can notice that every Vyatta VC4 machine is now aware of the networks behind the other Vyatta VC4 machines.
Figure153: Vyatta HQ IPIP Tunnels: Routing Table
Figure154: Vyatta Branch1 IPIP Tunnels: Routing Table

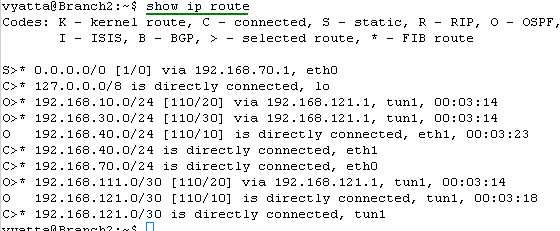

Figure155: Vyatta Branch2 IPIP Tunnels: Routing Table
Let's look at the OSPF information about the tunnel interfaces on the Vyatta HQ, Vyattaa Branch1 and Vyatta Branch2 (note the MTU too), see Figure156, Figure157 and Figure158.
Figure156: Vyatta HQ IPIP Tunnels: show ip ospf interface tun1 and tun2
Figure157: Vyatta Branch1 IPIP Tunnels: show ip ospf interface tun1
Figure158: Vyatta Branch2 IPIP Tunnels: show ip ospf interface tun1
Let's see if we have connectivity between sites, see Figure159, Figure160 and Figure161.
Figure159: IPIP Tunnels: Ping from a Host Behind Vyatta HQ to Hosts Behind Vyatta Branch1 and Vyatta Branch2
Figure160: IPIP Tunnels: Ping from a Host Behind Vyatta Branch1 to Hosts Behind Vyatta HQ and Vyatta Branch2
Figure161: IPIP Tunnels: Ping from a Host Behind Vyatta Branch2 to Hosts Behind Vyatta HQ and Vyatta Branch1
The ping traffic we generated was recorded by our Wireshark capture, see Figure162.
Figure162: Wireshark Capture IPIP Tunnels: Ping
Things look good.
All the configuration lines entered on Vyatta HQ, Vyatta Branch1 and Vyatta Branch2 can be found here:
- Vyatta HQ
- Vyatta Branch1
- Vyatta Branch2
8. IPIP - Make The hub-and-spoke Topology a Mesh One
If you want, you can make the hub-and-spoke topology a mesh one, by configuring an IPIP tunnel between Branch1 and Branch2.
On Branch1 add:
set interfaces tunnel tun2
set interfaces tunnel tun2 address 192.168.131.1/30
set interfaces tunnel tun2 description "IPIP Tunnel to Branch2"
set interfaces tunnel tun2 encapsulation ipip
set interfaces tunnel tun2 local-ip 192.168.60.2
set interfaces tunnel tun2 remote-ip 192.168.70.2
set protocols ospf area 100 network 192.168.131.0/30
commit
On Branch2 add:
set interfaces tunnel tun2
set interfaces tunnel tun2 address 192.168.131.2/30
set interfaces tunnel tun2 description "IPIP Tunnel to Branch1"
set interfaces tunnel tun2 encapsulation ipip
set interfaces tunnel tun2 local-ip 192.168.70.2
set interfaces tunnel tun2 remote-ip 192.168.60.2
set protocols ospf area 100 network 192.168.131.0/30
commit
In Part 11 we will use IPsec to protect the GRE tunnels on the Vyatta VC4 VMs for Scenario 2.
|
